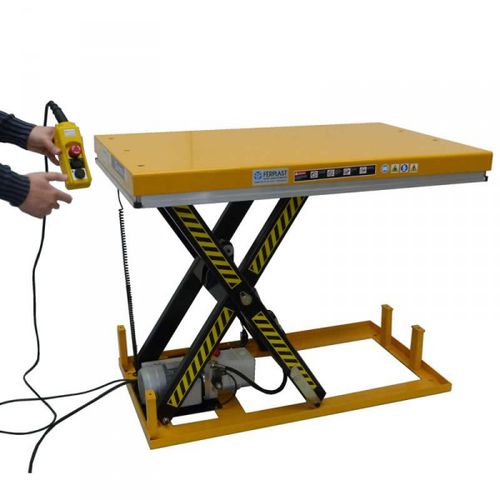

Electric lift table HW series, dimensions mm. 820×1300 and mm. 1000×1600, max. eight mm. 1000, load capacity Kg. 1000.

The lifting platforms HW series are lifting equipment to be installed in a fixed position and are driven by a hydraulic power pack. Manufactured according to the accident prevention, they consist of two platforms (upper and lower) and a pantograph system actuated by a hydraulic cylinder.

Main Features
Very strong structure
Construction according to safety standards EN and ANSI / ASME
Only equipment lifting
Evenly distributed load
Upper platform in smooth metal sheet
Security perimeter aluminum on the upper platform
Hydraulic unit of European production, positioned internally, designed for intermittent use by 30%
Keypad with low voltage controls
Hydraulic system with a safety valve for overload
Control valve for descent speed
Large hydraulic cylinders with valve fall arrest in case of breakage of the pipes
Antishearing safety distance between the arms of the pantograph
Joints with self-lubricating bushings
Lifting hooks removable for transportation and installation
Painting with yellow RAL 1028.

Technology : scissor
Operation : electric
Type : stationary
Capacity : 2,000 kg (4,409.2 lb)
Lifting height : Min.:
