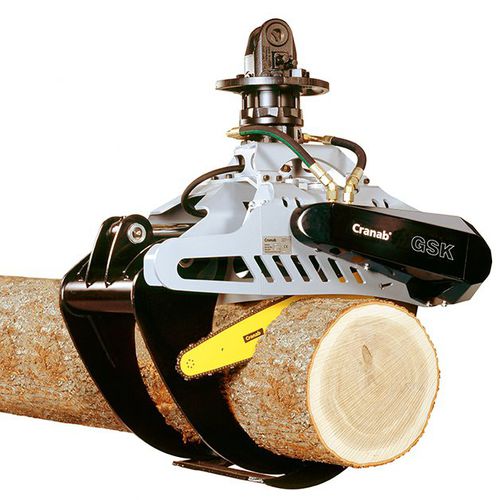

The GSK grapple saw cassettes are supplied for grapples ranging from the CR/CE250 up to the CR400, and with saw bar lengths ranging from 75–100 cm. Saw chain tensioning and saw bar return are both automatic. The chain is lubricated from a separate lubricating oil tank, and the amount of oil can be easily adjusted.

Available models:

GSK/CR250
GRAPPLE SAW
Weight excl. rotator – 275 kg
Saw bar length – 75 cm
Max. cutting diameter – 48 cm
Max. load – 3500 kg
GRAPPLE SAW CASSETTE
Saw motor displacement – 14 cc
Rec. working pressure – 19 – 25 Mpa
Rec. flow (min–max) – 80 – 100 l/min
Saw bar – .404/75, 82, 90, 100 cm
Chain tensioning – Auto
Chain lubrication – Adjustable
Oil tank – Separate
Saw bar return – Auto
Saw cassette weight, incl. adapter – 110 kg

GSK/CR280 (X)
GRAPPLE SAW
Weight excl. rotator – 310 kg
Saw bar length – 75 cm
Max. cutting diameter – 50 cm
Max. load – 3500 kg
GRAPPLE SAW CASSETTE
Saw motor displacement – 14 cc
Rec. working pressure – 19 – 25 Mpa
Rec. flow (min–max) – 80 – 100 l/min
Saw bar – .404/75, 82, 90, 100 cm
Chain tensioning – Auto
Chain lubrication – Adjustable
Oil tank – Separate
Saw bar return – Auto
Saw cassette weight, incl. adapter – 110 kg

GSK/CR360 (X)
GRAPPLE SAW
Weight excl. rotator – 380 kg
Saw bar length – 82 cm
Max. cutting diameter – 55 cm
Max. load – 5000 kg
GRAPPLE SAW CASSETTE
Saw motor displacement – 14 cc
Rec. working pressure – 19 – 25 Mpa
Rec. flow (min–max) – 80 – 100 l/min
Saw bar – .404/75, 82, 90, 100 cm
Chain tensioning – Auto
Chain lubrication – Adjustable
Oil tank – Separate
Saw bar return – Auto
Saw cassette weight, incl. adapter – 110 kg

Technology : with grab
Treated material : wood
Round piece diameter : 48 cm, 50 cm, 55 cm, 60 cm (19 in)
