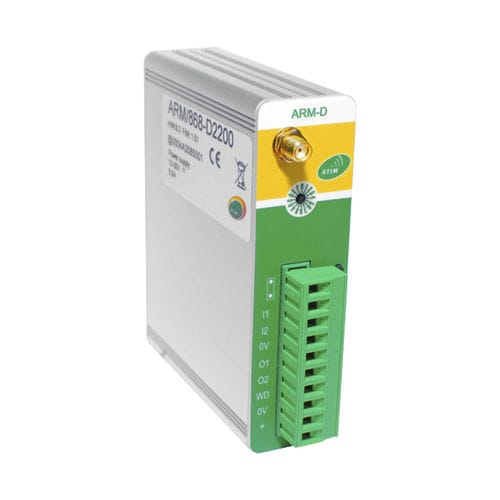

The ARM-Dxxxx facilitates the transmission of Modbus information. With a serial connection RS232 or RS485, it interfaces with industrial automatons. The radio modem transfers up to 10 digital 0-30V inputs + 10 outputs, 4 analog inputs + 4 analog outputs from one PLC to another in P2P radio. Sigfox or LoRaWAN versions are also available to send information from an isolated Modbus PLC to IoT clouds.

Its configuration is configurable from the tools of the ATIM suite.

Compatible with the computer and mobile versions of the IoT web platform, data visualization, remote parameterization of the sensor and the configuration of alerts according to predefined thresholds are made possible in a few clicks.

Installation and start-up takes less than 10 minutes: Plug & Play.
Interfaces :
2 Digital inputs (connector)
2 digital outputs Vmos 30V/0.5A max (connector)
1 analog input 4-20mA/0-5V (connector version -DA)
1 analog output 4-20mA/0-5 (connector version -DA)
RJ13 connector behind for RS232 configuration (extra)
Radio (SMA) 868MHz/27dBm max or 433MHz/10dBm max
Power supply (2 wires) 10-30VCC / 6W

Network : RS232, radio
