How to achieve stable 3D measurement in production

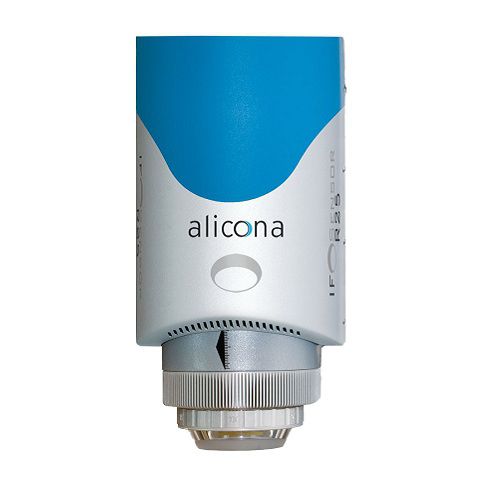

IF-SensorR25 is a solid optical 3D measurement instrument for automated form and roughness measurement in production. The sensor is integrated into a production line and delivers high resolution, repeatable and traceable results when measuring surface characteristics in the
µm or sub-µm range. This resolution can hardly be achieved by conventional 2D solutions or tactile techniques.

The robust technology of Focus-Variation delivers high resolution results with high repeatability in research and production. Therefore IF-SensorR25 is a platform that enables the use of the same measurement process both in-line and in the lab. Standardized interfaces (QDAS)
support an easy and quick integration into production allowing comparable in-line and lab measurements.

IF-SensorR25 is a measurement system for quality assurance in serial production. It is suitable for numerous materials including composite materials. The modular design allows arbitrary extensions of hard- and software for new and/or complex measurement tasks. In the field of EDM, the sensor can be implemented directly in a Makino machining center to perform in-machine measurement. This “closed loop manufacturing” production concept
enables 3D measurement of components directly in the machine, enabling up to a fourfold increase in machining accuracy.

Measured value : roughness, shape
Technology : 3D, optical
Applications : process, industrial, laboratory
Configuration : portable
Other characteristics : adjustable, multi-parameter, in-line, automatic
