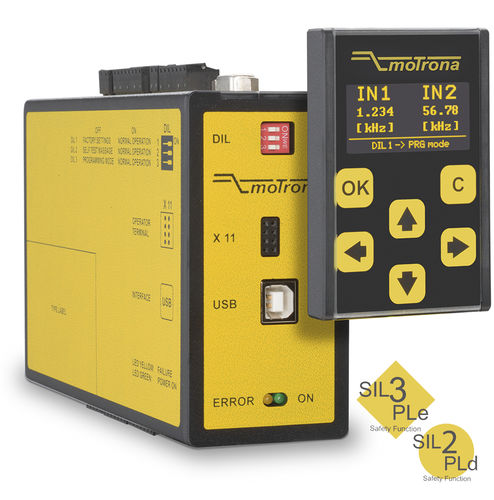

Safety Motion Monitor

DS230: Inputs for certified HTL-,RS422- and SinCos encoder, signal splitter
DS236: Inputs for certified HTL-,RS422- and SinCos encoder
DS240: Input for certified SinCos encoders, signal splitter
DS246: Input for certified SinCos encoders
DS250: Input for two independent, non-certified incremental encoders, signal splitter,
wire monitoring
DS260: Input for one certified incremental encoder, signal splitter, wire monitoring

The DS series is suitable for safety-related monitor tasks, e. g. overspeed, underspeed, standstill or rotative direction for complex machine applications.

• SIL3 /PLe or SIL2 / PLd certification
• Safety functions equivalent to EN 61800-5-2
(SS1, SS2, SOS, SLS, SDI, SSM, SLI, SBC, STO, SMS)
• Input frequency up to 500 kHz
• Power supply 18 … 30 V
• Compact housing for 35 mm mounting top hat rail (according to EN 60715)
• Setup via USB port by operator software OS6.0
• Plug-in display and programming unit BG200 (optional)

Function : rotation direction, standstill, speed
Mounting : SIL
