The new generation of transfer machines

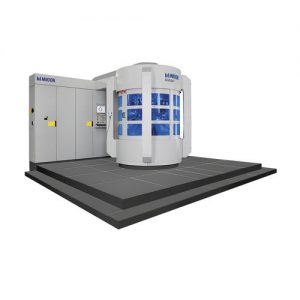

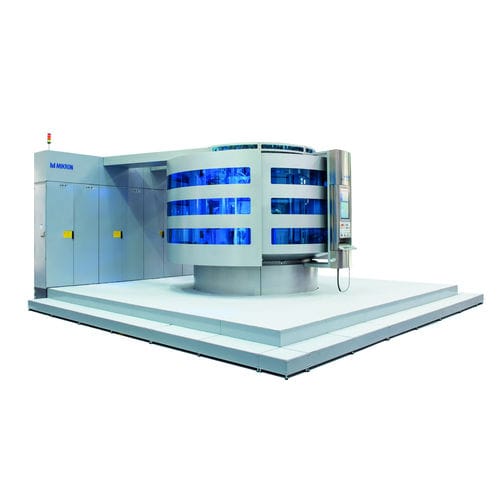

Full CNC high-precision rotary transfer machine with 12 stations and up to 30 working units machining simultaneously
For extremely high-precision workpieces up to 80 x 80 x 80 mm or cylindrical pieces up to Ø 65 x 100 mm
Complete 6-sided machining possible
Applications / Main markets:
Automotive, watches, locks, pneumatic & hydraulic
Precision
ATS (Advanced Thermal Stabilization): All elements of the machine are thermally stable
“IndraMotion MTX” from Bosch Rexroth: A modern and highly innovative control method
Turntable indexing mechanism is close to the machining axis
CNC machining units
Highly rigid and compact construction
Spindle bearing with minimum overhang
Productivity
Machine configuration
Up to 3 machining units on a single station
Up to 30 units in production simultaneously
Minimal down times
Table rotation and indexing time less than 1 second
Fully automatic tool changer (ATC), chip-to-chip time 2.5 seconds
Maximum machining speed
Spindle speeds of up to 40,000 rpm
High acceleration and traversing rate of machining units
Use of complex and efficient cutting tools from Mikron Tool
Efficiency and reliability
Simple clamping and unclamping of tool holder
HMI: Advanced diagnostics and scheduled maintenance
High reliability: Motors, kinetic elements and cables in climate-controlled, clean outer area
Efficient evacuation of chips into central machine
Flexibility
Modular concept
Perfect configuration for individual machining tasks
Type : rotary
Control type : CNC
Number of positions : 12-position
Other characteristics : machining, high-productivity, high-accuracy, for cylindrical products, 3/5-axis
