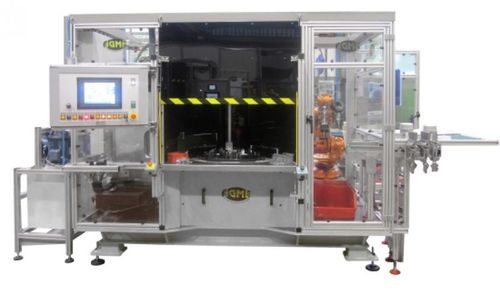

Rotary transfer machine

PROCESSES
Assembly of multiple hinge components
Capability for several different hinge models
TECHNOLOGIES
Rotary transfer with 4 workstations
Design and manufacture of special flaring fixtures
Incorporation of Poka-Yoke to ensure part type and location
Bush flaring
Automatic feeding and insertion of pins
PLC control
Automatic unloading with reject identification and management
ADVANTAGES
Compact, “low footprint” machine that minimizes floor space used
Flexible machine that can assemble 2 different hinges models
Production optimization that results in significant productivity improvement
Built-in quality assurance of the assembled components

Type : rotary
Control type : CNC
Number of positions : 4-position
Other characteristics : assembly
