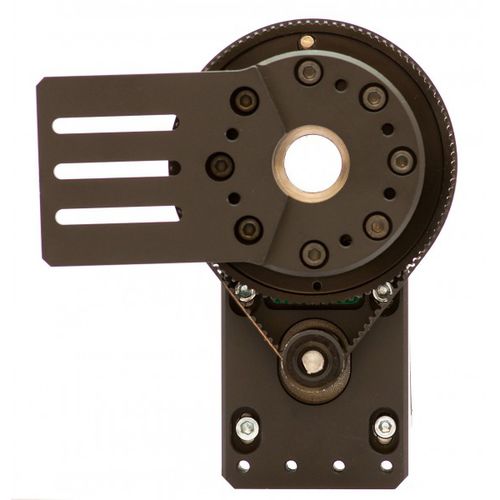

Rotary stageRSA1

Universal lightweight motorized rotary stage

Specifications
6061-T6 black anodized aluminium and stainless steel axle
Modular construction
GT2 belt drive for smooth operation
Double preloaded instrumentation bearings zero backlash
12.7mm through hole for wire harness or slip-ring
Magnetic Hall sensor for precise homing
Rotation speed with SCA1 controller default settings: 0.091-27.5 RPM
Minimal rotation angle: 0.025°
Reduction ratio: 1:5
Motor Specifications
Step angle: 1.8°
Rotor inertia: 15gcm2
Weight: 0.15kg
Holding torque (2 phases on): 13.0 N*cm
Rated current/phase: 1.0 A
Phase resistance: 3.5 Ohm
Voltage / phase: 3.5 V
Phase impedance: 4.5 mH

Orientation : rotary
Type : motorized
Other characteristics : modular, universal
