Designed to fulfill high precise measuring tasks. The rotary unit is antifriction beared, free of play. Distinguished stiffness. Encoder with high resolution grant for high positioning accuracy.

RT-350
With piezo drives. Best suited as rotational axis of CT-measurement systems, because the low magentic field intensities of used materials.

Options:
>pneumatic clamping of rotation
>splash guard

RT-500
With torque drive. The advantageous construction enables the RT-500 for the application as rotational axis in multi-axis-sytems.

Options:
>pneumatic clamping of rotation
>splash guard
>worm gear drive with servo drive

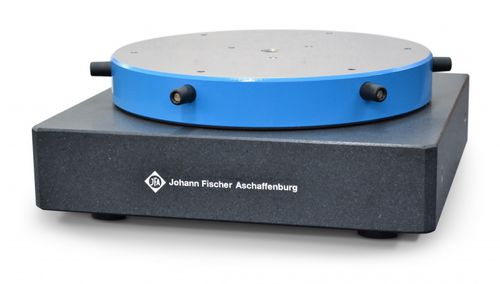

RT-1500
With servo drive. Air bearing in axial direction. Base plate and rotary table are of natural hardstone, granite. Due to automatic regulation, the air gap will be held constant at various weight loadings.

Options:
>pneumatic clamping of rotation
>splash guard
>angle encoder
>manual adjustment

Orientation : rotary
Type : linear servo-motor, piezo
Number of axes : multi-axis
Other characteristics : high-accuracy, automatic, air bearing
