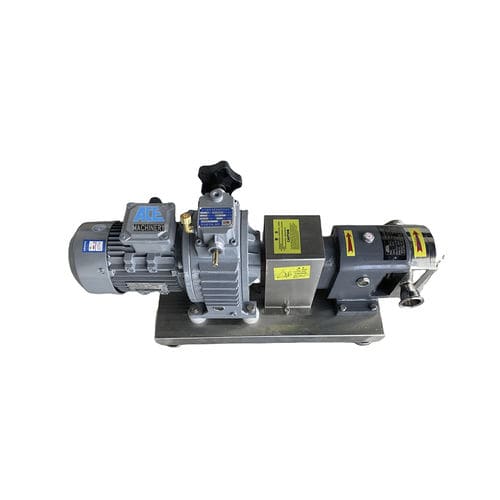

Rotary lobe pump

Food Grade Rotary Lobe Pump Sanitary Lobe Pump Price Stainless Steel Rotor Pump

Working Principle:
Rotary Lobe Pump Viscous Liquid Lobe Pump, It Is Also Named Rotary Lobe Pump, Three-Lobe Pump, Sole Pump,Etc. When The 2 Simultaneous Reverse Rotating Rotors(With 2-4 Gears)Revolve, it Produces Suction Force At The Inlet(Vacuum),Which Intakes The Material Delivered.The 2 Rotors Divide The Rotor Housing Into Many Smaller Parts And Revo-Ive In The Sequence Of A→B→C→D. When It Revolves To Position A,Only Housing I Is Filled With Medium;When It Revolves To Position B,Housing B Encloses Part Of The Medium,When It Goes To Position C,Housing A Encloses Medium, And Finally It Goes To Position D,Then Housing A,B And II Are Interlinked And The Medium Is Transported To The Outlet.As This Process Is Repeated,Medium(Material)Is Transpor-Ted Continuously.

Lobe Structure:
1.Butterfly Rotor Pump: With Butterfly Rotor, It Is Superior To Other Rotor Pump When Transferring Material With High Viscosity And Larger Powder And Effectively Transports Extremely Stiff Material.

2.Singe Butterfly Curved Rotor Pump (Powder Rotor Pump): This Pump Series Are Specially Design To Transport Material With Larger Powder. Its Unique Shape And Curve Makes It More Outstanding Compared to Other Pumps In Delivering Material With Larger Powders. It Effectively Prevents Powders From Clashing, Which Is The Top Choice Of Pumps Transferring Material With Powders.

3.Tri-Lobe Pump: This Is Commonly Type, The Capacity And Performance Is Better Than Other Rotors. The Shortage Is High Requirement To Medium Because Its Easy To Damage Grain Medium.

Fluid : for food products
Operation : with electric motor
Priming : self-priming
Technology : rotary lobe
Domain : industrial, for the food industry, sanitary
Applications : process, outlet, reverse, transport
Material : stainless steel
Other characteristics : horizontal mount, suction
Flow : 43,000 l/h (11,359.39825 us gal/h)
Pressure : 10 bar (145.038 psi)
Power : Min.:
