Product Details:
Type open mixing mill
Material stainless steel
Capacity 5 Kg/hr
Computerized Yes
Automatic Grade Semi-Automatic
Control System Human Machine Interface
Cooling System Water Cooling
Supply Ability : 500 Set Per Month

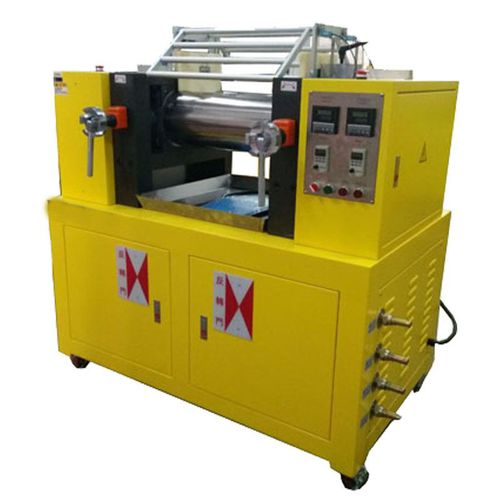

Rubber Mixing Dispersion Kneader Machine
Introduction:
Rubber mixing dispersion kneader machine is designed and engineered to masticate and knead natural/ synthetic rubber, chemical material and EVA/PVC pellets.
Application:
This machine is widely demanded in plastic and rubber industry to mix polymers and other material. This machine comprises electric control system, safety device, roll, bearing, gap adjusting device, etc.
Feature:
Mills rolls can be drilled, bored and grooved
Speed ratio is made according to the formula and processing requirements of customers
Welded frame, frame cap and base are treated by annealing for stress relieving
Chilled cast alloy iron based rolls have hardness that reaches to 70HB
Brake and emergency stop device
Automatic feeding oil or grease lubrication
User-friendly controlling system
Methods of adjusting roll nip: manual or electric
Intelligent control panel and PLC control system:
Real-time data is recorded and exported, that includes kneading time, torque, temperature, ram pressure, current and recipe code.
It is possible to set up control system to 20 mixing steps, which saves 20 recipe spaces.
The control system can remotely import process recipe and can monitor data, and communicating with MES via Ethernet communication interface.
An Ethernet communication interface and reserves 20% of the control points.
Technology : rotary drum
Batch/continuous : batch
Loading : top-loading
Other characteristics : with cooler, disperser, kneader
