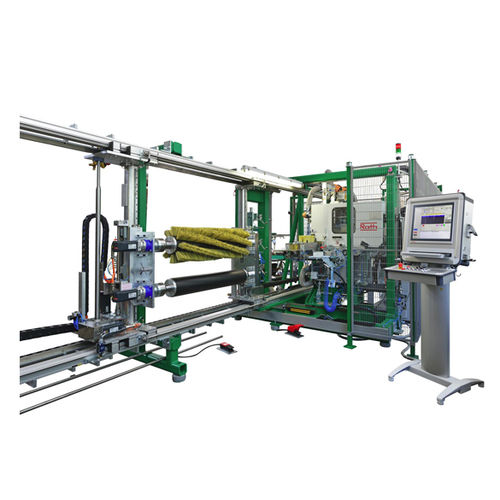

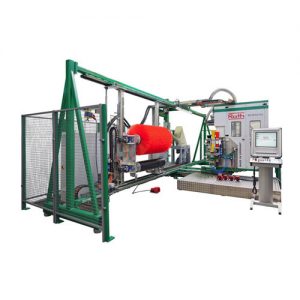

Roller brushing machineWA-BFA21/E2

1-Tool Machine
with 2-axles PC-control for the production of roller brushes, with two drilling and one filling station, with PC-control programming free

Tool size:

2,0 mm – 8,5 mm

Tool stroke:

110 mm (standard)

Materiallength:

45-240 mm (unfolded)

Production of roller brushes up to 1000mm length
With two drilling and one filling station
2 pneumatic stations, running continuously
No changing of the brush bodies from drilling to filling.
Control of failure and breakdown by indicator
High speed, simple and quick changing from one model to the other.
Home manufacturing of brush programmes, automatic generation of brush programmes.

Machine speed:

400 bundles / min

Noise Level:

75 dB

Electrical connection:

4,0 KW

Weight:

2300 kg, net

Dimensions:

approx. D: 3,80 m W: 3,50 m H: 2,20 m

Options : roller
