SPATZ+ / ServoSPATZ+ Inverter for Medium Frequency Welding
Our 1 000 Hz MF inverters have been specially developed for use in the automotive industry and are available as 400, 600 and 900 amp versions. The inverter in combination with our weld timer is the heart of every MATUSCHEK medium frequency welding system. In a master-slave configuration, which requires two SPATZ+ inverter, higher output currents are also possible. For example, for use in aluminium welding.

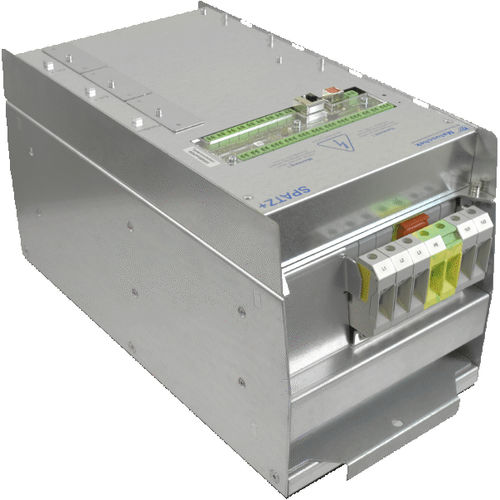

SPATZ+M900
U1: – 3~ 400 V – 500 V, 50/60 Hz
SN (400 V): –
140 kVA at 20 % ED
88 kVA at 50 % ED
U2N (400 V): – 500 V / 1 000 Hz
I2max: – 950 A
Weight: –
20 kg (air-cooled), 44.1 lb
17 kg (water-cooled), 37.5 lb

Equipment
USB interface for local PC / Ethernet for line PC
Adaptive MASTER control
Memory for 1 024 MASTER reference welding programs
Constant output control, constant current control (CCC), constant voltage control (CVC), constant power control (CPC)
Signal inputs for electrode voltage and welding current. Optional 2 further signal inputs, e.g. for electrode force and electrode displacement, proportional valve output
Memory of the last 100 000 welding data records and the last 1 000 curves for quality assurance
Error memory for the last 100 error messages with recording of the respective curves for error analysis
8 independent tool life counters each for tool life, milling, milling blade and clamp
Grinding management and monitoring
NUGGETIndex
Battery-buffered real-time clock and counter readings
Parallel I/O interface, 16 digital inputs, 11 digital outputs, 24 V DC
Firmware update via PC / Internet
3 slots for bus and expansion cards

Technique : resistance, spot
Power supply : three-phase
Output current : DC, pulsed DC
Other characteristics : automated, electronic, medium-frequency, inverter
Current : Max.:
Output frequency : 1,000 Hz
