ONLINE MOISTURE MEASUREMENT ON BULK MATERIAL

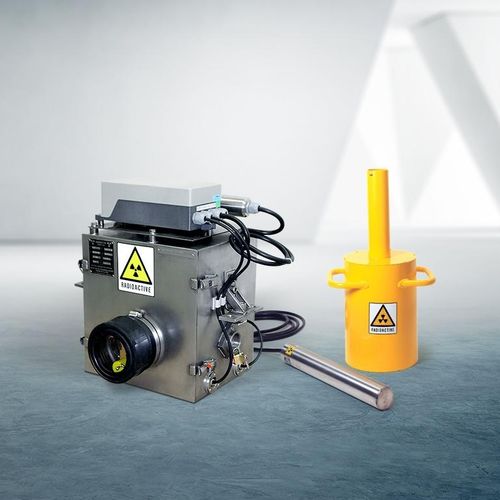

The moisture online analyser LB 350 is primarily used for applications which can’t be solved with conventional sensor technologies due to conductivity or particular chemical properties of the material to be measured.
The LB 350 moisture measurement system is for real-time determination of the moisture content of a wide variety of bulk materials such as coke, sinter mixture, ore, sand, building materials, and is used on many different types of vessels.

Technological Highlights
Customer benefits
• – Representative measured values due to large measuring volume
• – Accurate moisture measurement
• – Not affected by e.g. temperature, conductivity, pressure, pH-value etc.
• – Measures through the vessel wall
• – Can be paired with density compensation

State of the art technology
• – Proven neutron moisture measurement technology
• – Attainable accuracy ± 0.1 % depending on application
• – Analog output from sensor (0/4…20 mA)
• – Digital input for “hold signal”
• – Digital outputs for system status and min and max values
• – Sensor operating temperature: -20…+50 °C
• – Density compensation enabled

System description

Neutron moisture measurement is a proven technology with a long track record of success for moisture measurement on bulk materials; it functions where most other moisture measurement technologies fail for various reasons. The measuring a volume with diameter of up to one meter ensures a representative measured value. Once the system has been installed and calibrated, it can be left alone for several years providing reliable moisture monitoring of bulk products.

Measured material : for bulk materials
Technology : radiometric
Other characteristics : in-line
