Available in different configurations, Tiger receivers provide standard relay and analogue in/outputs, digital inputs and communication via different fieldbus systems, whereas both the STOP function and two designated relays are approved according to SIL3 IEC 61508 standard and PLe, the highest safety rating available in radio control.

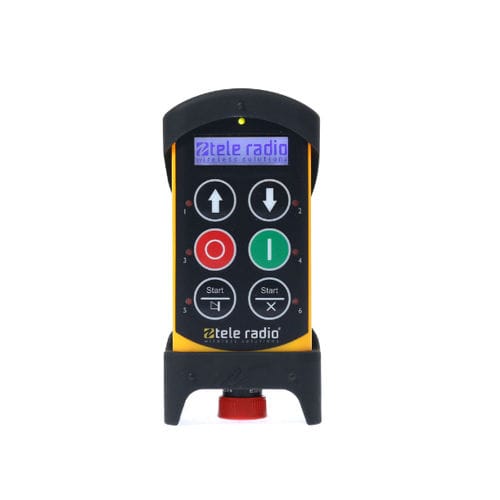

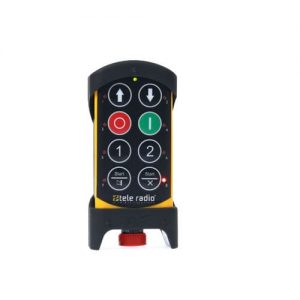

Tiger is capable of providing feedback from your machine, displayed on the transmitter’s LCD screen or alternatively utilizing LED’s situated next to the transmitter’s function buttons.
Systems are pre-programmed with operating modes accommodating hundreds of different user applications. Advanced settings or custom software are available upon request.
The Tiger G2 TG-TX-MNL6 is a 433-MHz receiver that features a wide range of specifications. This includes modulation type is FM-Modulation, narrow band, a dimension which measures approximately 76 x 160 x 37 mm/3 x 6.3 x 1.5 in, a protection of IP66, a operating temperature range of 20 to +55ºC/-4 to +130ºF and weights of 320 gr/0.7 lb. Its output range functions with 10 mW (by 50 ohm). Mobiles, winches, EOT cranes, tower cranes and stone crusher/screeners are the main application of this device.
This product also has improved by putting solid designs for larger transmitters which can be found inside part. Both the stop function and two relays in the receivers are approved according to the SIL3 IEC 61508 standard and PLe. All transmitters can have feedback from their weight indicating systems. Their batteries are rechargeable.
Type : radio
Control interface : with buttons
Number of buttons : 6-button
Product applications : industrial, relay
Battery type : rechargeable
Other characteristics : safety, compact, with feedback
Length : 160 mm (6 in)
Width : 76 mm (3 in)
Weight : 320 g (11.3 oz)
Temperature : Min.:
Frequency : Min.:
