This series, the Tiger G2, is considered as the next generation of the Tiger System as the products under this series are more compactly designed, but with the larger transmitters present in the previous system. Because this is a Tiger product, safety measures are prioritized, thus this the stop function as well as the two relays in the receiver of this product is an accordance with SIL3 IEC 61508 standard and PLe.

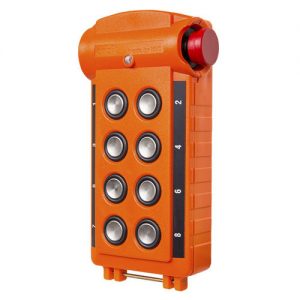

The Tele Radio TG-TX-MDR10 is a re-chargeable, 433-MHz transmitter which features a weight of about 295g with inclusion of batteries. It also has a dimension measuring approximately 76 x 160 x 37 mm. This IP66-classified device is capable of operating at a temperature range of -20 to 55 °C. This transmitter is primarily utilized for winches, EOT cranes and stone crushers/screeners.
Pushbutton transmitters
Tiger G2’s pushbutton transmitters are the best in the market. Their stable performance and build will keep you running day-
Tiger G2 is a radio control for complex applications. One transmitter can control up to 15 receivers.
Adjustable range up to 1000 meters.
Tiger G2 has 69 different channels to choose from for uninterrupted control.
The transmitter and receiver are protected against moist and dust to a minimum of IP65.
Duplex communication, CANopen and Modbus.
Rechargeable and replaceable battery or rechargeable internal battery depending on model.
in and day-out. The push button transmitters are at a minimum of IP65 and most are IP66. You can get the handheld units with or without screen depending on your requirements. Transmitters with screens can show a variety of data feedback depending on your applications capabilities.

Type : radio
Control interface : with buttons
Number of buttons : 10-button
Protection level : IP65
Product applications : industrial, transmitter
Other characteristics : safety, compact, with integrated display, with feedback
Length : 210 mm (8 in)
Width : 76 mm (3 in)
Weight : 400 g (14.1 oz)
Temperature : Min.:
Frequency : Min.:
