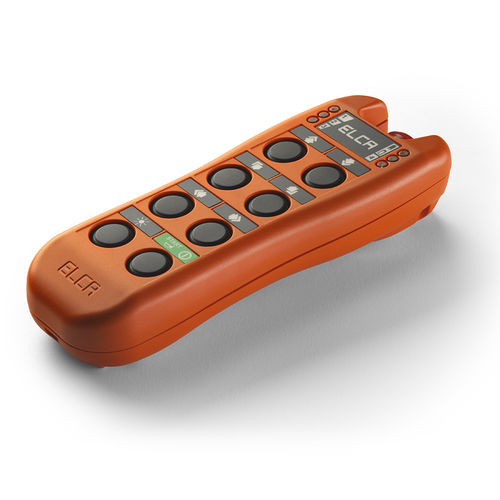

EVO is the handheld remote by ELCA, compact, lightweight, ergonomic, studied to command machines and industrial systems in the lifting and handling sectors; it is suited for a variety of application demands. It consists of 6 double step push buttons, 1 auxiliary button for programmable functions, Start and Emergency STOP buttons. The electronics are low-power lithium battery (up to 40 hours of continuous use); it is fully recharged in 4 hours and in 15 minutes you get 3 hours of battery life. The hand control stops in the presence of radio disturbance, and at the next Start, it automatically chooses a new available frequency. The “Function” button can be a momentary/latching (with or without memory) command or a selection command (1, 2, 1 + 2), providing led indication of the active selection. EVO receives signals from the commanded machine via a bi-directional system, and gives indication on 4 available LEDs. The casing is made of ABS with IP65 protection. The activation of the transmitter is protected by an electronic key-code, the auto shut-off is programmable (after 2, 5, 10 minutes of inactivity). The replacement of the transmitter does not affect the previously stored settings (done via a combination directly from the keys of the keypad). The standard package includes: EVO transmitter, MAGO FLEXI receiver, power supply ELCA-CLIP, protective cover, shoulder belt, wrist belt, user manual.

Type : radio
Control interface : with configurable buttons
Number of buttons : 8-button
Features : with emergency stop
Protection level : IP65
Product applications : for machines, for cranes, for lifting equipment, construction, for overhead cranes, winch, relay, industrial, for hoists, for contactors, for industrial applications, unloader, PLC
Battery type : rechargeable, lithium
Other characteristics : safety, compact, with feedback, custom, for harsh environments
Length : 193 mm (8 in)
Width : 72 mm (3 in)
Reach : 100 m (328’01”)
Weight : 250 g (8.8 oz)
Temperature : Min.:
Frequency : Min.:
Charging time : 4 h
Continuous working time : 20 h
