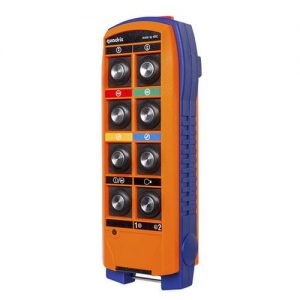

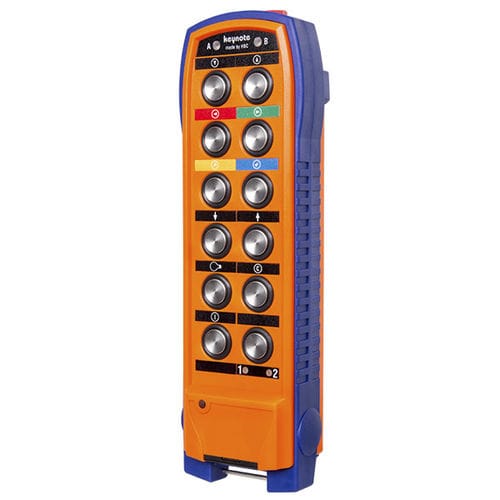

The versatile control for diverse one-step applications.
The convenient control for one-step drives. High-quality one-step HBC push buttons. Second operating level for double function range.
Operating elements & control functions
Up to 12 one-step push buttons
STOP impact switch
Up to 21 control functions (on / off) –
Indication
LED for the indication of operating / battery status
LEDs for the indication of selection buttons
Protection from unauthorized use
Activation via HBC start sequence or merlin® TUC.
Automatic deactivation of the transmitter after preset time without command input
(standard: 15 min) –
Manual frequency switch
With the manual frequency switch, the operator can switch to the next radio channel by pressing a button.
Your advantages:
The process is easy to understand and offers a quick solution.
How it works:
To switch the radio channel the operator presses the Start button.
If this channel is occupied by another device, it is possible to switch again to the next frequency.
16 radio channels are available.
Your advantages:
To switch the frequency, the operator simply has to turn the transmitter off and on again. The radio system then automatically finds a free channel.
This process is thus a quick and easy solution for the operator.
How it works:
When the transmitter is turned on, the radio system checks if the radio channel that was last used is available.
If this channel is occupied, the radio system automatically switches to a free radio channel.
If there are frequency conflicts later on, the operator simply turns the transmitter off and on again.
radiomatic® AFS immediately searches for a free radio channel.

Type : radio
Control interface : with buttons
Number of buttons : 12-button
Features : on/off
Protection level : IP65
Product applications : for cranes, for lifting equipment, transmitter
Battery type : rechargeable, Ni-MH
Length : 210 mm (8 in)
Width : 64 mm (3 in)
Weight : 360 g (12.7 oz)
Temperature : Min.:
Frequency : Min.:
Continuous working time : 30 h
