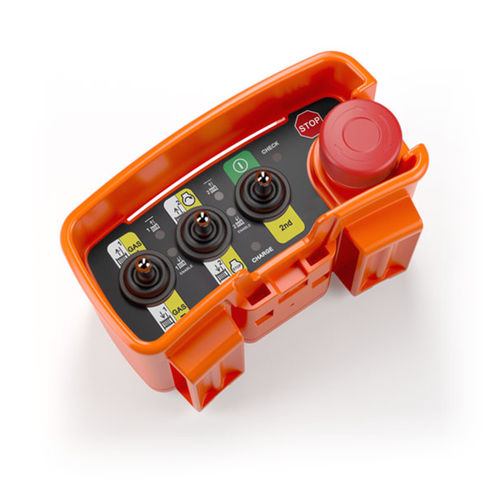

PIC is a compact waist belt radio control; PICCOLO (small) and lightweight, robust and reliable, it can be used to control forestry winches remotely via radio, with no need for cables.
The standard configuration consists of 3 lever selectors and a mushroom-shaped emergency stop button (it performs a total of 5 commands, and up to 8 with a second function toggle); alternatively, it is available with a dedicated button for the “wind” function.
The customizable, anti-reflection panel is made from durable materials and remains effective even in particularly heavy applications.
4 LEDs can also be provided to visually signal which commands are active (automatic unwind, enable winding, for one or two winches).
The replaceable internal lithium battery offers a continuous transmission of up to 20 hours. The battery can be charged with the ELCA-CLIP USB cable, which enables portable battery chargers to be used with ease.
The emergency stop circuit meets the requirements for systems where safety performance of up to category 3 PL d, according to EN ISO 13849-1, is called for.

Type : radio
Control interface : with buttons, with toggle switch
Number of buttons : 3-button
Features : with emergency stop
Protection level : IP65, rugged
Product applications : for trucks, for machines, for demo equipment, for tunneling, for tanker trucks, for contactors, for agricultural applications, for dust remover, for conveyor belts, PLC, for marine applications, handling, winch, for septic pumps, conveying, relay, for woodworking, for hydraulic cranes, for mining equipment, for furniture, for drilling, for agricultural machinery, for concrete mixers, for presses
Battery type : rechargeable, lithium
Other characteristics : safety, compact, belt
Length : 125 mm (5 in)
Width : 87 mm (3 in)
Reach : 150 m (492’01”)
Weight : 350 g (12.3 oz)
Temperature : Min.:
Frequency : Min.:
Charging time : 4 h
Continuous working time : 20 h
