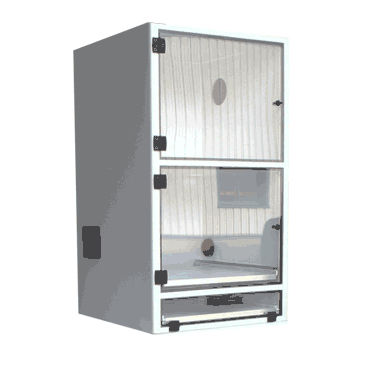

Protective cabinet
Food-safe protective cabinet with three compartments
Designed to house a complete computer workstation: LCD monitor, base unit, printer and keyboard
Characterictics
The body consists of a single thermoplastic unit so that the front and sides are part of the same structure;
Access to both upper compartments via PMMA doors (transparent thermoplastic) – 6mm thick
10 mm thick extruded composite panels;
19 mm thick extruded composite panels for rear and floor of cabinet;
Smooth cabinet surfaces, no tight corners to facilitate cleaning and prevent the build-up of dust;
Cabinet can be attached to the wall (without supports).
Two ventilators with grilles and filters to cool the cabinet;
80 mm cable gland in the right hand side panel;
The three compartments are independent: cables pass through an opening in the screen/printer shelf;
Upper compartments protected by compression latches: PMMA doors held in place against a seal located within the frame;
Monitor & base unit compartment
Access is via door fitted with polyamide hinges
Printer compartment
Access is via door fitted with polyamide hinges
Sliding shelf fitted to triple extending rails in stainless steel, capable of handling loads of up to 60 kg, allowing the printer to be pulled fully free
Type : protective
Mounting : with legs
Construction : shelf
Material : thermoplastic
Product applications : for PC, workstation, printer, LCD monitor
Other characteristics : waterproof
Width : 600 mm (23.6 in)
Height : 600 mm (23.6 in)
Depth : 1,070 mm (42 in)
