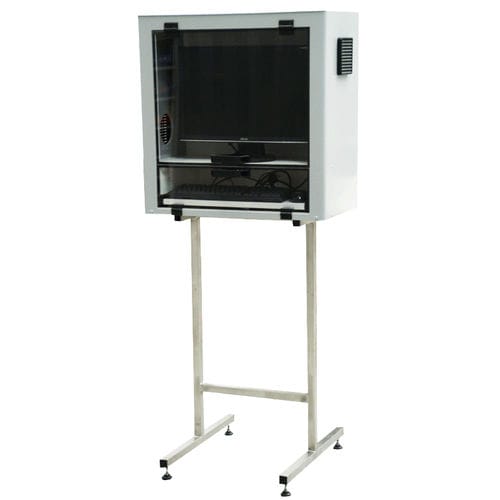

Protective cabinetCPA

Designed to house a whole computer workstation: flat screen, base unit, keyboard and mouse
Characteristics:

The body of the cabinet is a single, thermoplastic form, meaning the front and sides are a single structure;
10 mm thick extruded composite panels;
Smooth surface, no sharp corners, facilitating cleaning and preventing the build-up of dirt;
Separate upper and lower compartments: to allow cables to enter the cabinet via an opening in the monitor mounting screen;
Two inlets fitted with air grilles and air filters for ventilating the cabinet;
Cable glands (80 mm diameter) located on the right hand side panel of the cabinet;
Cabinet can be attached to the wall (without supports).
Monitor and Base Unit compartment:

Front access panel via roller-blinds in a 6 mm thick transparent PMMA screen on two polyamide hinges;
Opening and closing the compartment using a pin-latch on a peripheral leaktight seal;
Retaining hook holding the screen-based shutter in the “open” position for interventions on to the computer hardware.
Keyboard and mouse compartment:

Front access panel via roller-blinds in a 6 mm thick transparent PMMA screen on two polyamide hinges;
Opening and closing the compartment using a pin-latch on a peripheral leaktight seal;
19 mm thick sliding shelf on two double section steel slides.

Type : protective
Mounting : with legs
Material : thermoplastic
Product applications : for PC, workstation
Other characteristics : waterproof
Width : 700 mm (27.6 in)
Height : 700 mm (27.6 in)
Depth : 380 mm (15 in)
