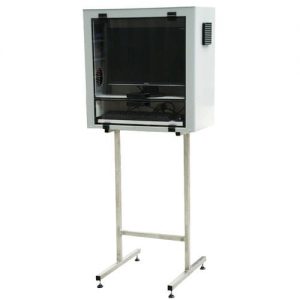

Food grade protective cabinet for laser printer
Characteristics :
The body of the cabinet is a single thermoplastic form, meaning the side panels and rear are a single unit;
The body is a through-stained, 19 mm thick composite material, making the cabinet watertight;
Connectivity: two standard cable glands (7 to 13 mm) to allow cables to enter the cabinet.
Front panel :
Front access to printer:
Thermoplastic fold-down flap mounted on piano-style hinges and held shut by two latches.
Upper face :
Two possible materials for the covers:
– 10 mm-thick PVC, mounted on piano-style hinges;
– 6 mm-thick transparent PMMA, mounted on two friction hinges.
Assisted opening using pneumatic rams to hold the cover open while work is done inside the printer;
Cover closes by slotting into drop-down flap and against side seals.
Advantages :
Ergonomically designed cabinet
Guaranteed leak-tight seal
Optimum permanent protection
Type : protective
Mounting : with legs
Construction : hinged door
Material : metal, composite material
Product applications : for the food industry, printer
Other characteristics : waterproof
Width : 500 mm (19.7 in)
Height : 500 mm (19.7 in)
Depth : 600 mm (24 in)
