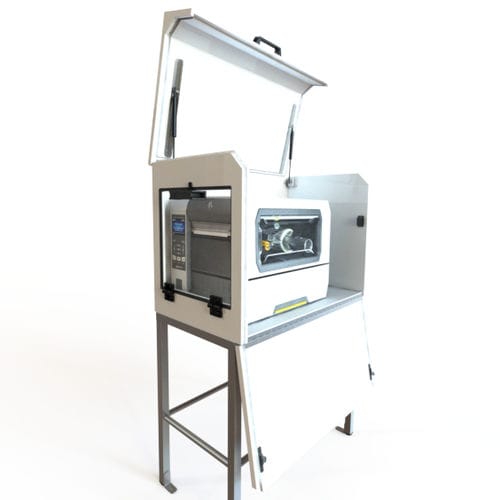

Protective cabinet for large thermal printers

Characteristics :

Single piece, heat-formed thermoplastic cabinet body, giving the same structural strength on the front, sides and back.
Walls in 19 mm thick composite, through-coloured to guarantee cabinet protection & waterproofing.
Cabinet has a smooth surface to facilitate cleaning and prevent the buildup of dust/waste.
Two composite mounts can be added to hold and lift the printer.
Connectivity : the cabinet is supplied with two standard cable glands (7 to 13 mm) to allow cables to enter the cabinet.
Handling :

Side access to thermal printer.
Cabinet openings.
Side panel swings out on a piano hinge and held in place by two latches.
Heat-formed cover with PVC reinforncement to provide optimal resistance :
– Flap closes against lip-seals to guarantee leak-tightness.

– Attached with piano hinges and supported by two pneumatic cylinders.

Front panel :

Access to printer controls and labels via the front of the cabinet using a swing-out flap in 6mm
PMMA (transparent thermoplastic).

Construction : floor-standing
Configuration : rectangular
Application : for thermal printers
Other characteristics : protection
