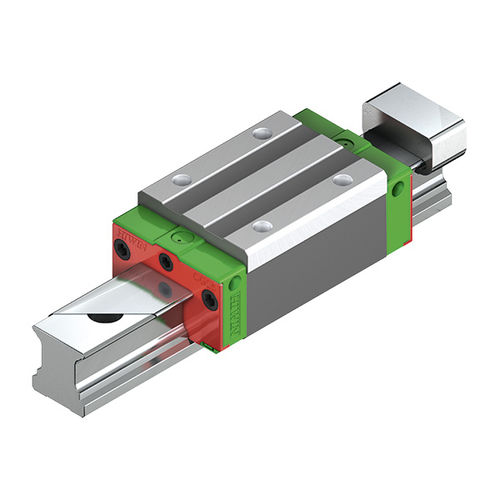

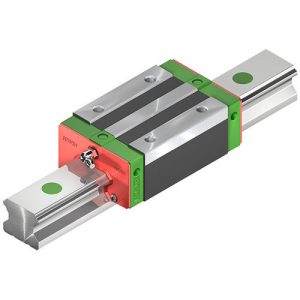

Properties of the linear guideways series CG:
Standard series in O arrangement. The first choice for single rail applications, optionally with cover strip. The HIWIN linear guideways of the CG series with four ball tracks are designed for high loads and rigidity. Due to the 45° arrangement of the ball tracks in O-arrangement, the CG series can support loads from all directions equally and guarantees the highest moment load capacity, especially in MX direction.

Structure of the CG series:
o Four-row recirculating ball bearing guide with best dust protection already in the standard version
o Optimised lubrication concept for long relubrication intervals and short stroke applications.

Advantages:
o Speil-free
o Interchangeable
o High accuracy
o High torque load capacity, especially rolling moment Mx
o Optionally with cover strip

Technology : four-row recirculating ball bearing
Range : 20 mm, 25 mm, 15 mm, 45 mm, 30 mm, 35 mm
Other characteristics : profiled guideway
Rail width : Min.:
Rail length : Min.:
Load : Min.:
