Fillet Re-Cutting Production Line

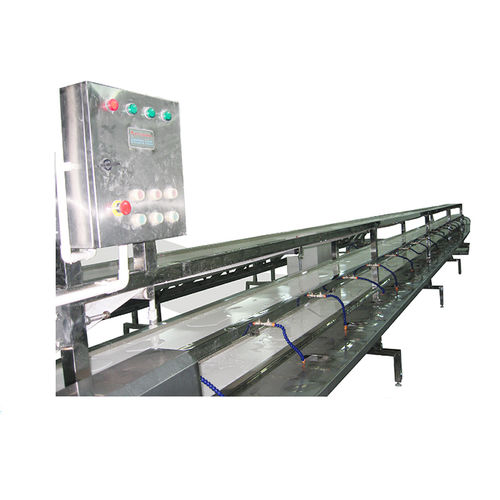

Fillet Re-cutting Production Line is to assist workers to re-cut fillets to be more beautiful. It has 3 conveyor lines: the first one conveys fillets to every work post, where workers recut fillets artificially. The second one conveys the recutted fillet. The last one conveys and collects the little fishbone and fish crumbles.
This equipment mainly consists of a driving device, a transmission drum, a conveyer belt, a groove type upper supporting roller, a lower supporting roller, a rack, a sweeper, a tension device, a turnabout drum, a guide chute, an electric control device, etc.
The conveyer belt winds about the transmission drum and the turnabout drum in the tail part to form an annular sealing belt. The supporting rollers are used for bearing the conveyer belt and the materials being transported on it. The tension device enables the conveyer belt to have adequate tensile force, so that friction force occurs between the tension device and the transmission drum to avoid slipping of the conveyer belt. During working, the transmission drum is driven by a speed reducer to drive the conveyer belt through a tooth profile, thus the materials enter from a feeding device to move along with the conveyer belt, and they reach the discharge port via a certain distance to shift to the next process.

Finished product : for the food industry
