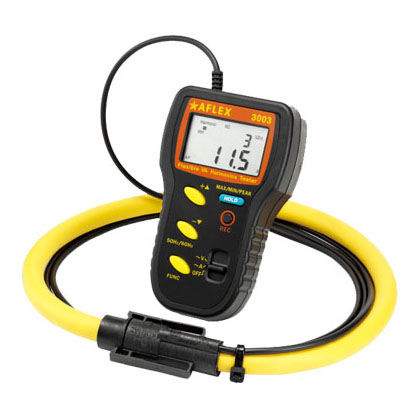

Power quality measuring instrumentAFLEX-3003, AFLEX-3005

• Power Analysis (3005)
• W, KW, H.P.
• VA ,KVA, VAR, KVAR
• PF, Phase Angle( CD)
• Energy (WH, KWH)
• Dual displays (W+PF, VA÷KVAR)
• Balanced 3 CD Power Quality and Sequence Harmonics Analysis
• True RMS (V and A)
• 3000 A
• Non-interrupted Harmonic Analysis (V and A ) to the 5Oth Order in % and Magnitude
• Analysis of % THD-F and C.F.
• Fast Peak Function (33ps and 39ps)
• Programmable PT (1 to 250 )ratios
• Auto – Power – Off: 30 Minutes

Flexible probe , different from normal clamp meter, can pass through obstacles at will and wind many conducting wires simultaneously, max. diameter l7Omm

Measured value : power quality
