Power distribution cable harnessCP series

Kollmorgen Automation Suite™ uses EtherCAT®, our motion bus of choice for high-performance applications. We provide industrial-grade shielded Ethernet cables to ensure reliable operation with the lowest possible network latency. These top-quality cables feature PUR jacket material for outstanding durability, and are suitable for industrial applications anywhere in the world. We also offer the highest-quality motor and drive cables.

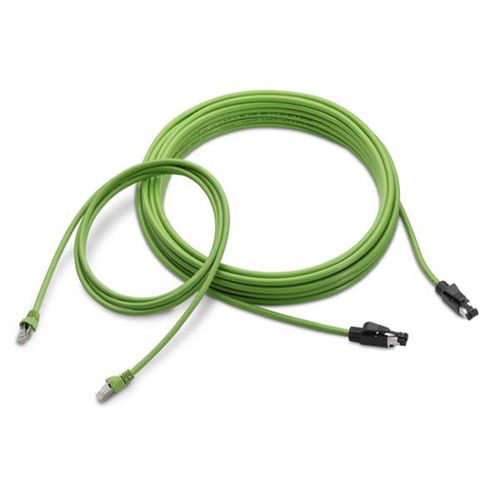

ENCP-xxxx-xxx (Kollmorgen Ethernet Cables)
Cross-section : 4 x 2 x AWG26/7…4 x 2 x 0.128 mm²
Cable sheath material : PUR
Color : green (RAL 6018)
Line configurator : SF/UTP
Diameter : sheath: typ. 5.9 mm ±0.2 mm
Bending radius : > 5 x diameter
Category/class : CAT5, class D
Operating/installation temperature : -40…+75 °C/-10…+60 °C
Insertion cycles : min. 750

Cable type : power distribution, Ethernet
Other characteristics : flexible, high-performance
