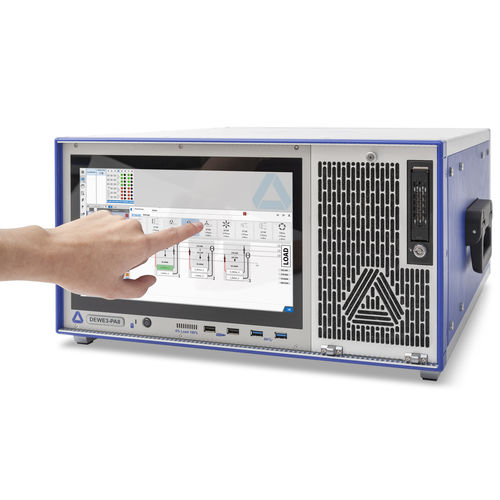

DEWE3-PA8 is the next generation of mixed signal power analyzer from DEWETRON. It meets and exceeds today’s demands for reliable and precision analysis of electrical motors, inverters, complete electric/hybrid electric drive trains and other electrical components.

The precision of the DC and AC voltage inputs (DC ±(0.02% of reading + 0.02% of range), AC ±(0.03% of reading)) and current inputs DC ±(0.02% of reading + 0.02% of range), AC ±(0.03% of reading)) is unrivaled in the industry. 10 MS/s and 18-bit A/D conversion, as well as the best linearity of the signal conditioning offers the highest dynamic performance in the whole input range. Because of the low range error, the DEWE3-PA8 achieves the highest accuracy available in the market, even with low range utilization. Precision accuracy is guaranteed throughout the whole analysis, without range switching or gaps in recorded data.

Up to 16 power channels guaranties reliable power analysis for several power groups, from 1 to 9 phases. This guaranteed reliability leads to savings for years to come by decreasing number of required devices, operational and maintenance costs, as well as a reduction in the time required for training. The modular architecture and user exchangeable input modules ensure that the DEWE3-PA8 is also capable of analyzing both environmental and mechanical parameters simultaneously. Therefore, the DEWE3-PA8 is the right solution for the complete analysis of drive trains and electrical components today and in the future.

Measured value : power
Application domain : for electrical networks
Configuration : benchtop, for integration
