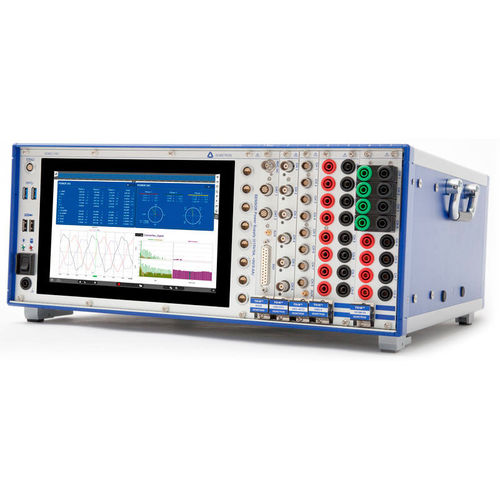

Power analyzerDEWE2-PA7

The brand-new DEWE2-PA7 Mixed Signal Power Analyzer is your turnkey solution for analyzing polyphase electric vehicles and engines behaviour with only ONE instrument.
It guarantees a basic accuracy of 0.01 %.

Up to 12 power channels and the capability for calculation of power parameters even for polyphase motors (up to 7 phases) turns the DEWE2-PA7 into a multi power analyzer.

Your advantages with DEWE2-PA7 at first glance
• Multi power, up to 12 power channels
• Poly phase, 1-7 phases per power system
• High accuracy: 0.04 % reading error of power measurement
• High dynamic range inputs
• Measurement range 1000 V / 24 A (crest factor 2)

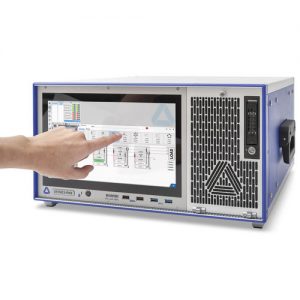

• 9″ multi-touch screen
• Mixed signal inputs (low voltage, digital, RPM, …)
• 18-bit A/D conversion
• Modular design, simply extendable
• Easy testbed integration

Measured value : power
Application domain : for electrical networks
Configuration : benchtop
