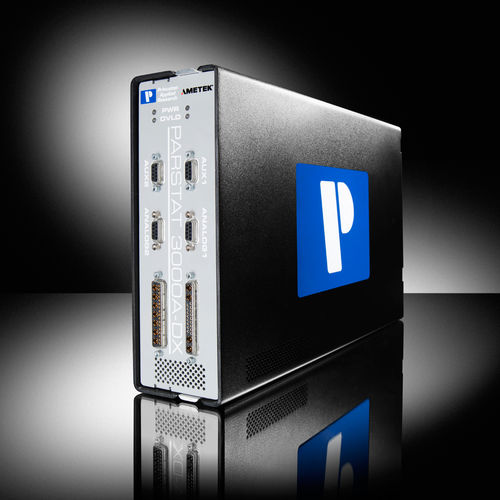

The PARSTAT 3000A-DX from Princeton Applied Research is both a hardware synchronized bipotentiostat/galvanostat and dual channel potentiostat/galvanostat in one. The compact design, based on the popular PARSTAT 3000A, combines 2 high performance, independent potentiostats in a single chassis. Combine this with a hardware synchronized start and the VersaStudio software platform for a fully functional bipotentiostat that is suitable for a range of applications from mechanistic studies and electrocatalyst evaluation using a rotating ring disk electrode (RRDE) to sensor development.
Key features of the PARSTAT 3000A-DX include:
+/- 2 A of current and +/- 30 V polarization and compliance
Up to 7 MHz EIS as standard
4 nA (120 fA resolution) as standard
6-WIRE capability to measure an auxiliary voltage
Floating ground
Data acquisition rate of up to 1000 kS/sec (1 µs time per point)
As a true bipotentiostat the PARSTAT 3000A-DX can control the signal and measure the response of two different working electrodes in the same cell with separate or shared reference and counter electrodes. The floating capability and hardware synchronization of the PARSTAT 3000A-DX, along with the wide range of available techniques in VersaStudio, make for an ideal and flexible bipotentiostat/galvanostat. Princeton Applied Research also offers rotators, RRDE electrodes and associated accessories for a complete RRDE setup.
Options : potentiostat
