GEOSPAD®2 DATA ACQUISITION SYSTEM FOR PRESSUREMETER

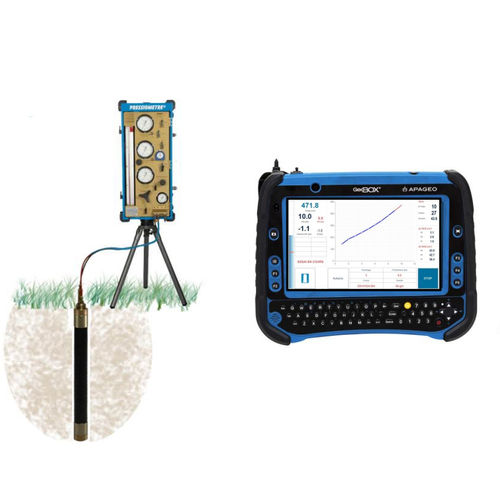

GeoSPAD®2 allows pressuremeter data acquisition through the central unit GeoBOX®.
The system is entirely integrated in the pressuremeter.

Geospad®2 is a unique system, fully integrated into the Menard Pressuremeter, which sends data directly to your GeoBOX®: reducing both material tidiness and installation time. It is user-friendly, and totally compatible with pressuremeters already equipped with sensors

Conformed to procedure B of ISO 22476-4 and ASTM D4719-07 standards, recordings are automatically carried out after 1, 15, 30 and 60 seconds with optimized accuracy: 0,1 cm3 on the volume and 10 kPa on the pressure.

GEOSPAD®2

THE +
Suitable to all kind of Ménard standard pressuremeter
Wifi data acquisition on GeoBOX®
Real time test visualization on GeoBOX®

NEW !
CYCLIC TESTS RECORDING ACCORDING TO THE ASTM D4719-07

GENERAL PRESENTATION

GeoSPAD® allows the acquisition of Pressumeter data via the central unit
for soil investigation GeoBOX®
. This system displays the conduct of
pressuremeter tests and automatically records the conditions and data of
these tests.
GeoSPAD®

2 system is integrated into Ménard pressuremeters which keep
their full performance range whether or not they are used with GeoSPAD®
2.
GeoSPAD®

2 is a waterproof box including 2 pressure sensors of 0-100 bar and a magnetostrictive sensor for
volume (ultrasonic technology sensor on demand).

Mounting : portable
Options and accessories : wireless, with data recording system
