… Numerous fibre configuration options
• Up to 120 km distance
• BiDi support (single fibre)
• Multimode and singlemode SFPs
… Designed for use in Industrial applications
• Dual 10 V to 60V DC power input
• 500,000h MTBF according to MIL HDBK-217K
• Galvanically isolated status output
… Compliant to PROFIBUS DP standard
• Supports all standard data rates to 12 Mbit/s
• EN 50170 compliant
• Standard 9 pin PROFIBUS D-sub connection
… Simple to use and install
• Auto negotiation of data rate
• Comprehensive diagnostic LEDs
• Compact housing with integral DIN rail clip

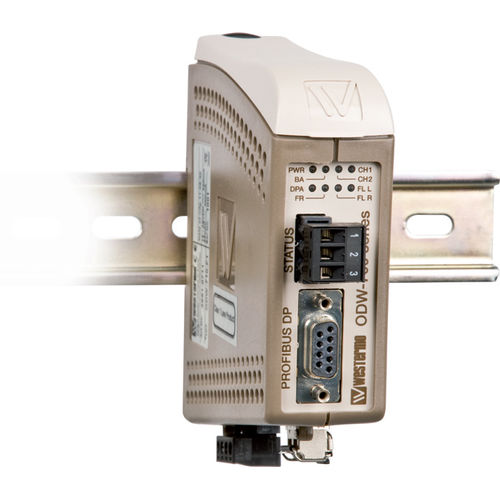

The ODW-710-F1 has been designed to allow the PROFIBUS DP protocol to be transmitted point to point over a fibre optic link. The design allows the use of a range of Westermo verified SFP (Small Form Pluggable) transceivers which can provide solutions with, for example, only a single fibre or distances up to 120 km.
This unit has been designed for industrial use where the requirement is for a long and reliable service life in a harsh environment. To ensure this reliable operation we manufacture using the highest quality components.
The ODW-710 can be used on all PROFIBUS DP networks to extend the operational network size beyond the normal constraints of the copper cable. All the data rates defined in EN50170 are supported

Type : point-to-point
Network : for fiber optics
Application : industrial, for PROFIBUS networks
Mounting : DIN rail
