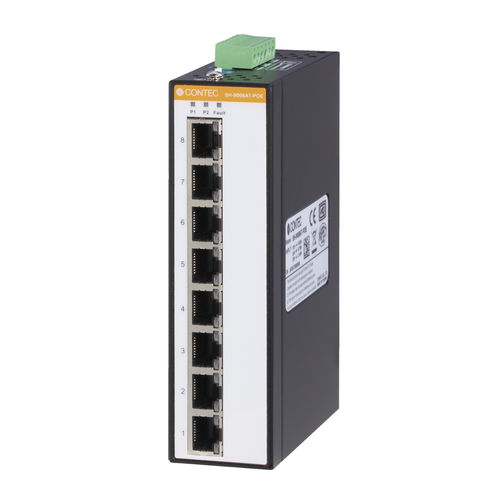

SH-9008AT-POE is an 8-port industrial switch which conforms to IEEE802.3ab (1000BASE-T) / IEEE802.3u (100BASE-TX) / IEEE802.3 (10BASE-T) standard, and it is capable of PoE power supply based on IEEE802.3af, IEEE802.3at. By using a LAN cable of category 5 or greater, power can be supplied to PoE devices that conform to IEEE802.3af and IEEE802.3at.

The functions including jumbo frames, AutoMDI / MDI-X, and auto negotiations are equipped. Due to the fan-less design, this hub can be used in the places where the quietness or a long lifetime of the product is required. Furthermore, a metal housing with excellent heat dissipation enables the product to be operated in the temperature between -35°C to 70°C. SH-9008AT-POE can be mounted onto 35mm-DIN rail or on the wall with the supplied brackets.

1. IEEE 802.3af / IEEE 802.3at-based PoE power
2. Support for a wide range of power supplies (12 to 57 VDC) and dual power supplies
3. Built-in boost DC-DC power supply enables 48V PoE output with 12 to 24VDC input
4. Equipped with eight 1000BASE-T-compatible PoE power supply ports
5. Mountable on DIN rails or walls
6. Usable in ambient temperatures of -35 to 70°C

Type : managed
Number of ports : 8 ports
Network : gigabit Ethernet
Mounting : DIN rail, embedded, wall-mount, built-in
Other characteristics : PoE, compact, rugged
Applications : industrial, IoT
