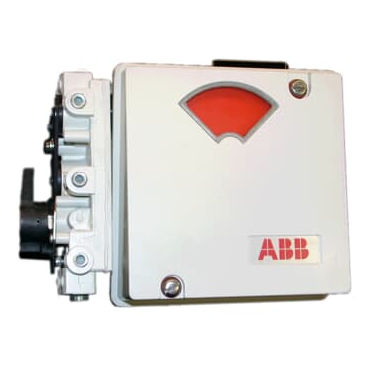

Type AV1 & AV2 Characterizable Positioners are control devices that satisfy a wide range of applications. They provide fast, sensitive, and accurate positioning of pneumatic single or double-acting, linear or rotary motion actuators.

A mechanical connection from the actuator to a position feedback cam in the positioner establishes actual position. Three characterized segments on one cam provide application flexibility by establishing various relationships between input signal and actuator position. The relationships provided by the segments are square root, linear, and square.

The Type AV1 positioner receives an external pneumatic signal and converts it to a pneumatic output. This output produces the motive force that positions the power actuator.

The type AV2 positioner receives an external 4-20mA signal and converts it to a pneumatic output. This output produces the motive force that positions the power actuator

Compact rugged design
High vibration and shock environments
Fast, accurate calibration
Single or double-acting without additional hardware
Vent design allows natural gas operation
Available with explosion-proof I/P converter

Type : pneumatic, electropneumatic
Orientation : rotary, linear
Other characteristics : compact
