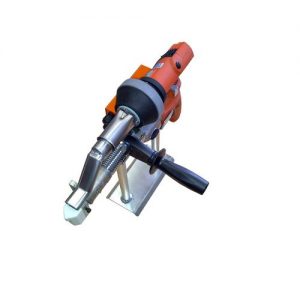

Plastics welding hand extruder18 E

welding extruder HSK18 E

Our cost-effective basic welding extruder for working in pool building and container lining. The melt is heatet by pre-heating.

BASIC EXTRUDER

– Extrusion welding from PEHD, PP, PVDF and PVC*
– rod feeding, no additional gearing
– Permanent speed control
– Rod diameter 3 and 4 mm
– 1 pce nozzle blank included
*PVC with special screw

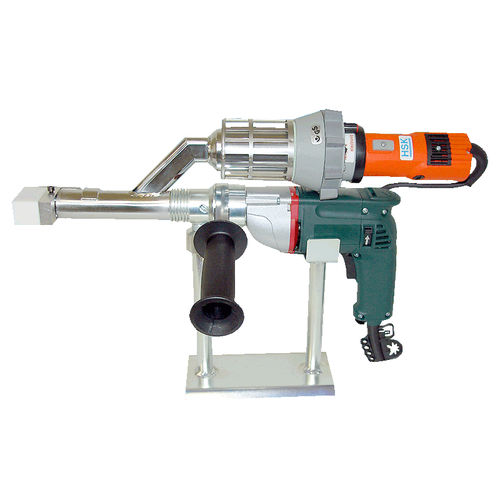

HSK18 E (WITH HOT AIR BLOWER)

– Works as basic extruder, without external air supply
– Hot air blower controlled (air quantity 300 l/min)
– Technical data see basic extruder
– Heating hot air blower 2600 W

Additional Information
welding rod ø 3 mm – 4mm
Abmessung (l x b x h) mm 450 x 75 x 240
Fördermenge 1,8 kg/h (mit 4 mm PEHD Schweißdraht)
Heizleistung Extruder Luft: 2600 W
power drive 620 W
Plattendicke 4 – 15 mm
Gewicht 4,5 kg
Luftbedarf Eigenluftversorgung
Spannung 230 V 50/60 Hz oder 120 V 50/60 Hz

Applications : for plastics welding
