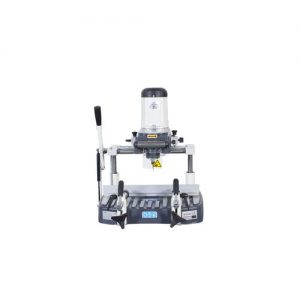

Plastic copy routerAS 447 – 3

AS 447, is the perfect solution for conventional machining of the aluminium door sash profiles.
The machine has 3 different spindles working independently from each other and in 0-90-180 degrees. Each spindle is referencing from another template to finish the profile routing operations in the fastest way.

The spindle working from the top opens the lock case, the spindle working from the front opens the handle and the keyhole on the front side of the profile, and the spindle working from the behind opens the handle and the keyhole on the backside of the profile.

Electrical Box and Controller Terminal
The electrics box is welded at the back of the machine body.
The controller terminal is also connected on the machine.
The operator can reach all the buttons, and the profile from the same place he stands.

Standard Equipment
Automatic clamping of milling depth on each position by means of 2
pairs of pneumatic horizontal and vertical pistons
Horizontal & vertical copying templates with standard figures 1,5 mt. roller conveyors placed at the right and left sides.
Spray mist cooling system”

Materials to be tapped : for aluminum, for plastics
Number of spindles : three spindle
Other characteristics : 3-axis, vertical, horizontal
X travel : 330 mm (13 in)
Y travel : 150 mm (6 in)
Z travel : 250 mm (10 in)
Rotational speed : 18,000 rpm (113,097 rad.min-1)
Power : 0.75 kW (1.02 hp)
