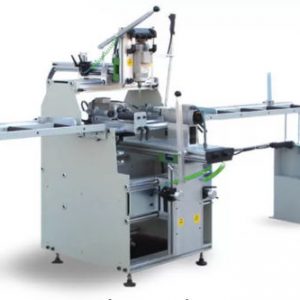

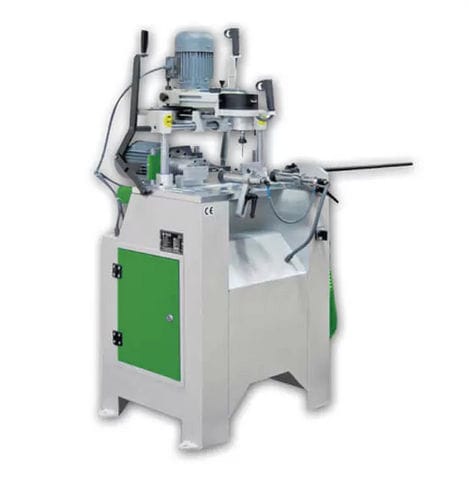

Single spindle copy router working from the top of the profile referencing a copying template with 18.000 rpm high-frequency spindle motor.
Manually moving copying head.
User friendly arms to operate the machine.
Pneumatic mechanical support for up-down moves.
Flexible copying template.
Horizontal and vertical stoppers for the milling head.
Rotary mechanical reference point for 4 different depths.
1:1 Ratio for copying.
Pneumatic profile clamping pistons.
Reference piece.
Electrical Box and Controller Terminal
The electrics box is welded at the back of the machine body.
The controller terminal is also connected on the machine.
The operator can reach all the buttons, and the profile from the same place he stands.
Standard Equipment
High-Speed Electrospindle
2 pieces horizontal profile clamping sets
Pulse spray mist coolant system.
Machine Dimensions
Net dimensions: 650 X 600 X 1.310 mm.
Packing dimensions: 750 X 700 X 1.400 mm.
Weight: 120 Kgs.
Materials to be tapped : for aluminum, for plastics
Other characteristics : 3-axis, for profiles, vertical, horizontal
X travel : 250 mm (10 in)
Y travel : 120 mm (5 in)
Z travel : 100 mm (4 in)
Rotational speed : 18,000 rpm (113,097 rad.min-1)
Power : 0.75 kW (1.02 hp)
