Quality in every respect

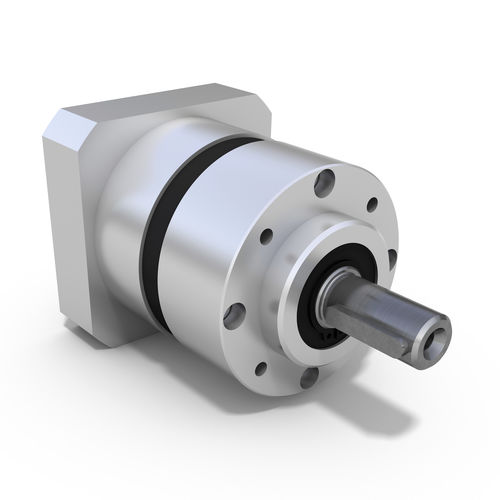

The low-backlash economy planetary gearboxes offer high performance and torque in a compact design. The one, two or three-stage gearboxes are available in five sizes for drive torques between 5 and 500 Nm. As a result of the high stiffness and overload capacity but at the same time low inertia, the EPL gearboxes can be used in a very wide variety of applications.

For higher requirements on output loads, Eisele developed the gearboxes EPL 50X-155X as well as the EPL-Q series which is optimized for direct mounting via the squared output flange with through holes. The EPL-SA gearboxes are ideal for use with stepper motors as a result of an improvement giving an even lower inertia. As a further option we offer the hollow shaft EPL-H series.

Key features:
low backlash
compact design
high efficiency
high stiffness
low inertia
high dynamic
integral ratio
high torque transmission
honed toothing
coaxial alignment of the input and output shafts
input direction of rotation = output direction of rotation
lifetime lubrication
simple motor installation
any installation position
variable connection dimensions

Type : planetary
Shaft orientation : coaxial
Torque : 200 – 500 Nm, 100 – 200 Nm, 20 – 50 Nm, 50 – 100 Nm, 10 – 20 Nm, 5 – 10 Nm
Shaft configuration : hollow-shaft, solid-shaft
Number of stages : single-stage, two-stage, three-stage
Performance : low-backlash, high-performance, high-efficiency, high-torque
Applications : for industrial applications, for lifting applications, for automation, for machinery, for servo motors
Other characteristics : compact, modular, for DC motors, for electric motors, for packaging machines, with motor adapter, for continuous operation
Rotational speed : Max.:
