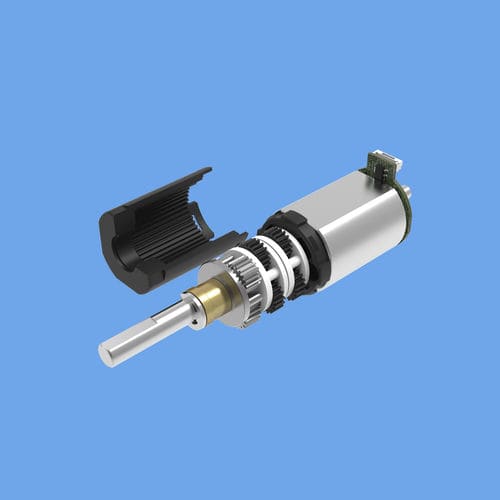

Model: ZWPD012012-XXX
1. Rated Voltage: 3-24 V
2. No Load Speed: 9-2923 rpm
3. No Load Current: 85-95 mA
4. Rated Load Speed: 8-2500 rpm
5. Rated Load Current: 130-135 mA

Gearbox Specifications:

Outer diameter – 12mm –
Material – Plastic –
Direction of rotation – cc&ccw –
Gear backlash – ≤3° –
Bearing – Porous Bearing – Rolling bearing
Axial endplay – ≤0.3mm – ≤0.2mm
Radial loading on output shaft – ≤5N – ≤10N
Operating temperature range – -20……+85℃

Gearbox stages: 1 – 2 – 3 – 4
Reduction Ratio – 4/6 – 16/24/36 – 64/96/144/216 – 256/384/576/864/1296
Rated Torque（gf.cm）1300 1300 – 1300 – 1300
Instant Torque(gf.cm）4000 4000 – 4000 – 4000
Gearbox efficiency – 85 – 73 – 65 – 58
Length – 9.5 – 13.3 – 17.1 – 20.9

Motor specifications:

Motor specifications –
Motors(Optional) – DC brush motor， DC brushless motor， Stepper motor
Voltage(Optional) – 3-24V
Input speed – ≤30000rpm
Current – 250MA max

Type : planetary, worm, gear train
Shaft orientation : coaxial
Torque : 1 – 5 Nm, 5 – 10 Nm, 0.5 – 1 Nm, 0.2 – 0.5 Nm, 0.1 – 0.2 Nm, 0 – 0.1 Nm
Number of stages : multi-stage
Performance : high-precision, low-backlash, low-noise, high-performance, high-torque, high load capacity, high-capacity
Applications : for industrial applications, for robots, for gear wheels
Other characteristics : industrial, compact, modular, custom, for pumps, motor, micro, for machine tools, miniature
Rotational speed : Min.:
Power : Min.:
