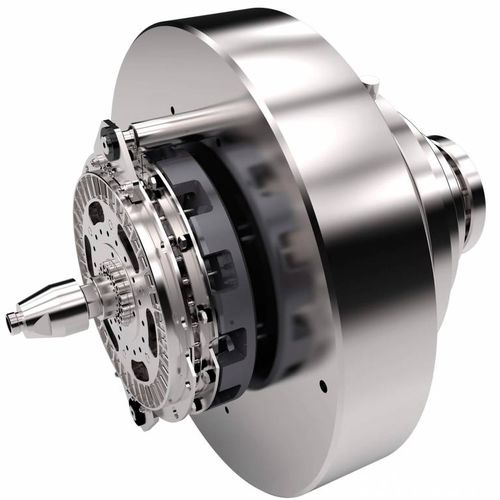

Complete press drive KA
The KA replaces the complete spur gear transmission or reduction stage in punching machines, eccentric presses and knuckle-joint presses, or suchlike, in which the energy required by the machine is taken from a fast-running flywheel. The ready-to-install unit comprised of a single-stage high-performance
planetary gearbox, a flywheel for energy storage as well as a pneumatically or hydraulically actuated clutch/brake combination.
Torque range from 16 kNm to 160 kNm
Gear ratios 4 and 6
Complete press drive KAE
This flywheel direct drive is a further development of the DESCH standard complete drive, which has already proven itself time and again in numerous applications. A highly efficient torque motor is integrated into the flywheel. It works almost wear-free and provides the highest rate of power density within the smallest installation space. The benefit of this to the machine manufacturer is that the previous motor, the motor bracket and the complete belt drive are not required. This in turn simplifies the assembly of the press and also saves assembly time.
Torque range from 16 kNm to 160 kNm
Gear ratios 4 and 6
Complete press drive ECO-KA
The new DESCH ECO-KA is a high-quality complete press drive (KA) with a planetary gearbox, flywheel and pneumatically operated clutch/brake combination (CBC) that is standardized to the following main components:
a fast-running standard flywheel from which large amounts of energy can be extracted even at very low output speed
a high-performance planetary gearbox with a gear ratio of i = 5.7, with a effectivity over 98% and extremely low moments of inertia
a tried and tested pneumatically operated clutch-brake

Type : planetary, spur
Torque : > 10 kNm, 1 – 2 kNm, 2 – 5 kNm, 5 – 10 kNm
Number of stages : single-stage
Performance : high-performance
Applications : transmission
Other characteristics : large
