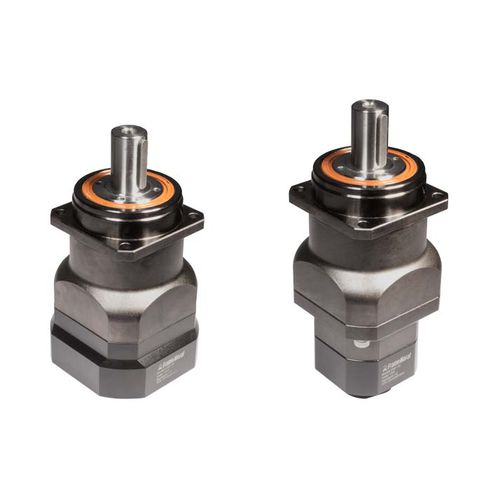

The precision planetary gear units of the GSF series with ground helical gearing and preloaded double taper roller bearings ensure low-noise synchronism due to their immense load carrying capacity and rigidity even under high load conditions. The one-piece planet carrier and the integrated needle roller bearings enable the transmission of high torques. The additional shaft sealing ring ensures maximum protection against dust and splash water in accordance with protection class IP65.

Design
The selection of an appropriate planetary gear for your
individual application. Contact us by phone or via the inquiry
form on www.framo-morat.com
Short delivery time
Small quantities available on short notice. Delivery
time for larger quantities or special requests has to be
checked individually
CAD drawings
Drawings for all series are available on request
Flexibility
For customized solutions we draw from a large range of
single components. Depending on demand they may be
combined for you in a flexible way

Framo Morat is not only known for its comprehensive manufacturing
expertise. Our customers also revere us as experienced partners in
drive technology. This expertise is the foundation of our planetary gear
series.
We place great importance on your flexibility in the configuration and
application of our planetary gears. Being faithful to our motto customer
satisfaction is always a priority.
Quality
Our high quality standards apply to all our planetary gearbox series.
These include especially high gearing quality, low backlash and long
service life.
Innovation
Fast response to customer requests and constant further development of our planetary gears is our driving force.

Type : planetary, helical
Shaft orientation : coaxial
Torque : 200 – 500 Nm, 100 – 200 Nm, 50 – 100 Nm, 1 – 2 kNm, 500 – 1000 Nm
Performance : precision, low-noise
Applications : shaft, transmission
Other characteristics : double, IP65
Rotational speed : 3,000 rpm, 4,000 rpm, 6,000 rpm, 8,000 rpm (18,849.56 rad.min-1)
