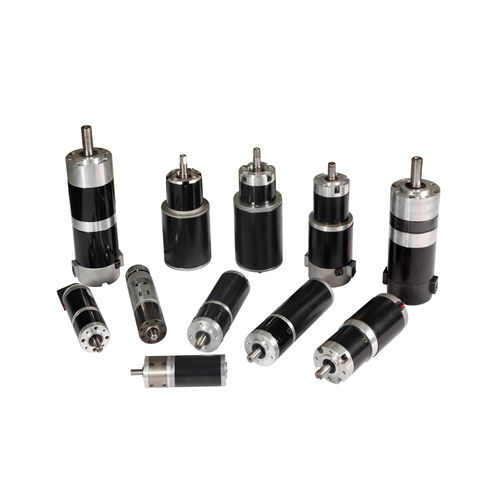

Brushed and Brushless DC Planetary Gear Motor
Characteristics
PLANETARY GEARHEAD CODE
16JX, 22JX, 24JX, 28JX, 30JX, 32JX, 36JX, 40JX, 42JX, 45JX, 48JX, 52JX, 52JXM, 56JX, 60JX, 72JX, 80JXZ, 82JX, 82JXZ, 92JX, 110JX, 120JX
Gearhead Size: Outer diameter 16~ 120mm

MOTOR TYPE
Brushed DC Motors, AC Motors, Brushless DC Motors, Stepping Motors

DC MOTORS / BRUSHED DC MOTORS / PMDC MOTORS / PERMANENT MAGNET DC MOTORS
Voltage: 6V ~ 400V DC
Speed: 1,000rpm ~ 12,000rpm
Power up to 3000W
Frame Types (OD): 16ZY, 22ZY, 24ZY, 28ZY, 31ZY, 35ZY, 36ZY, 38ZY, 40ZY, 42ZY, 45ZY, 52ZY, 55ZY, 60ZY, 63ZY, 71ZY, 76ZY, 80ZY, 84ZY, 90ZY, 96ZY, 104ZY, 110ZYT, 118ZY, 130ZYT, 160ZYT

OPTIONAL: ENCODER / BRAKE / CONNECTOR
IP CLASS: IP00, IP40, IP44, IP54, IP55, IP65, IP67 or IP68

Motor type : DC, AC, permanent magnet, brushless
Type : planetary
Shaft orientation : coaxial
Shaft configuration : solid-shaft
Power : 100 W…500 W, 10 W…50 W, 50 W…100 W, 0 W…10 W, 500 W…1000 W, 1 kW…2 kW, 2 kW…5 kW
Torque : 1 – 5 Nm, 5 – 10 Nm, 500 – 1000 Nm, 10 – 20 Nm, 20 – 50 Nm, 0.5 – 1 Nm, 0.2 – 0.5 Nm, 50 – 100 Nm, 0.1 – 0.2 Nm, 0 – 0.1 Nm, 100 – 200 Nm, 200 – 500 Nm
Voltage : 220V, 110V
Performance : high-torque, high-power, high-efficiency, high-performance, low-noise, high-precision, high load capacity
Product applications : for the food industry, industrial, for automation, cleaning machine, for medical equipment, for industrial applications, for packaging, for seat adjustment, for electric vehicles, for conveyor systems, for heavy-duty applications, for floor scrubbers, for home appliances, for doors, appliance, for gears, for mixers, for vehicles, for pumps, for door lock, for trucks, for the chemical industry, door, for conveyors, for automobiles, with encoder, for blinds, for robotics, for machines, for the packaging industry, for gates, for automatic distributors, for robots, for stairlifts, for hospital beds, for hygienic applications, for tracks, for marine applications, for agricultural applications, window
Certifications : CE, ISO 9001, ISO 14001
Other characteristics : compact, low-noise, permanent magnet, high-torque, solid-shaft, custom, IP55, precision, flange-mount, IP68, IP54, IP65
Operating temperature : Min.:
