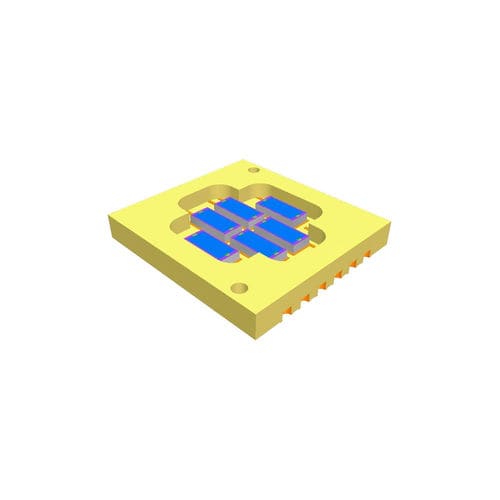

OID7
6 p/n photodiode array chip
General Description
Optical device consisting of a 6 chip silicon P/N photodiode array with high uniformity for the output signals. The device gives its best performances reverse biased, as it is based on PiN diodes.
The active area of each silicon die is 2.5 x 1.1 mm2
.The high optical responsivity is due to optimized antireflective coating deposited on the photodiode active areas.
The dark current is excellent for high temperature applications.
The package material is an high quality plastic material, with high TG.
OID7 is fully compatible with OID2 and has a new design that increases the component reliability.
Applications
Incremental Encoders
General Purpose
Features
High Responsivity (> 0.65 A/W @ = p)
High quantum efficiency (> 90% @ Vr=5V)
Extended temperature range -40°C +125°C
Wide active area
Fast response time
Low Dark Current
Fully compatible with OPR2100 and OL2100
Options : with integrated power supply
