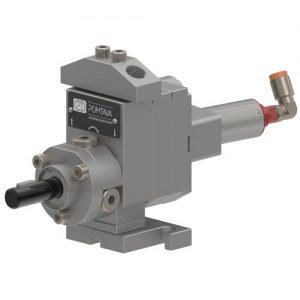

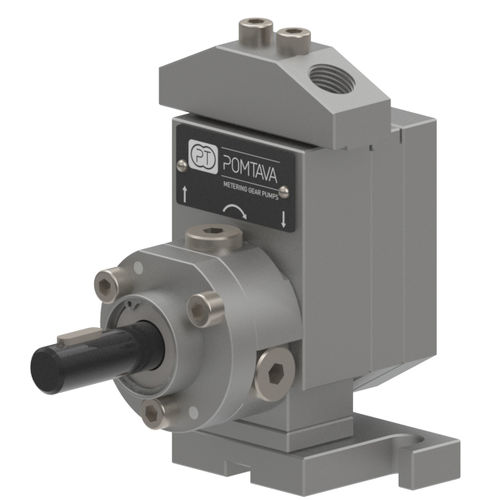

Paint pump1611-4-1

Application(s) : Paints
Specification(s) : I/O on the body

Technical data

Sealing : Lip seals and liquid barrier (16KA)
Rotation speed : From 10 to 200 min-1, depending on the product involved
Standard rotation : Clockwise rotation (A)
Output pressure : Max 15 bars
Input/Output : 2 holes Ø 6mm on the body of the pump. Delivered with connecting block G1/4’’
Drive shaft diameter : Ø 12mm with a 4mm key
Drive shaft height : H=40mm

Fluid : paint, for solvents
Technology : gear
Domain : industrial, for automotive applications
Applications : metering, high-precision
Material : steel
Flow : Min.:
Pressure : 15 bar (217.557 psi)
