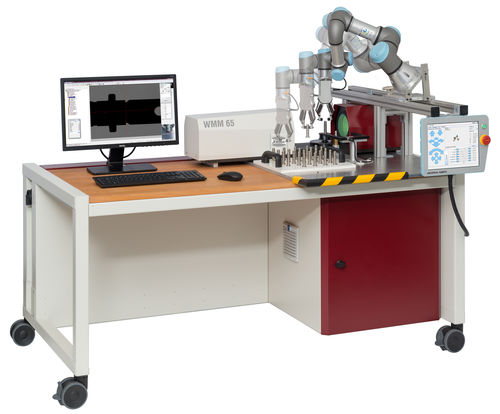

The WMM 65 optical measuring device can be modularly configured to meet the requirements of internal quality assurance processes. Integration into a production line or a manual QA workstation is no problem at all. The freely configurable interface for the workpiece holder and the process-side software interface enable optimum integration into the production environment. With the variable arrangement of standard or customised interfaces, the SAPHIR measurement software, etc. – we adapt to your processes, machines and wishes.

Standard equipment der WMM 65
-5 megapixel CMOS b/w camera
-Telecentric lens for precise measurement
-23.6″ multi-touch panel PC with Windows operating system
-LAN and WLAN network interface
-Telecentric LED transmitted light illumination
-Green LED light and filter for reduction of interferences
-Calibration certificate
-SAPHIR measurement and analysis software with SAPHIR shaft

Options for the WMM 65
-Customised measurement range
-Motorised and digitized rotation axis
-I/O module for interfacing to handling systems and handling robots
-Clamping tools: Magnet holder for workpieces; precise manual centring via iris diaphragm;
six-jaw chuck

The highlights
-Simple management of measurement programs
-Integration into the company network
-Interfacing to your CAQ interface
-Measurement directly on the production line
-Plug & Play installation thanks to works calibration
-Intuitive operation – measurement within seconds

Technology : optical
Applications : for industrial applications
