Optical profilometerIF-Profiler

How to measure roughness and surface finish

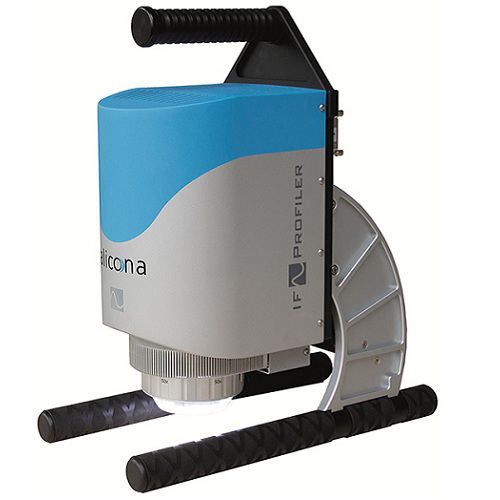

IF-Profiler is a handheld 3D roughness measurement system for high resolution measurement of surface finish. Users measure roughness of flat and curved components
with only one system. Measurements are performed both profile based (ISO 4287) and areal based (ISO 25178). The lightweight IF-Profiler consists of a 3D measurement sensor and a robust, at the same time handy framework. The ergonomic design combines ease of use and requested mechanical rigidity.

IF-Profiler achieves flexible measurements and applications at high measurement speed. Various positions and measurement fields are traceably and intuitively measured. The roughness measurement system is also used to measure geometries with steep flanks and various coatings. A note book, used as Control Server, enables a flexible usage.

Technology : optical, 3D
Function : roughness
Applications : industrial
Configuration : compact
