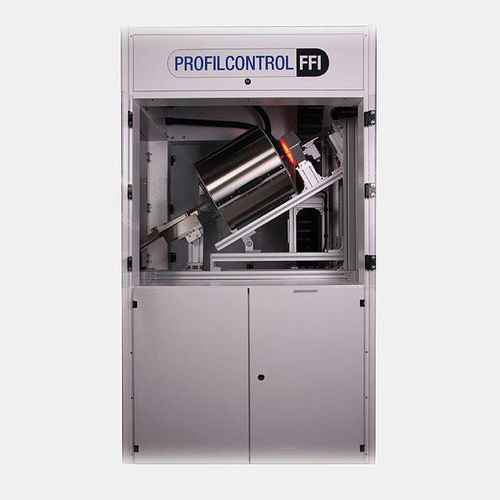

Optical single-piece inspection of cut-to-length or die-cut micro tubing or other small parts made of plastics, rubber or metal.

Surface and edge inspection in the inclined freefall mode at a rate of up to 1,000 pieces per min. Any faulty parts with grooves, scratches, dents etc. or with inaccurately cut edges will be sorted out immediately, ensuring that only product 100-percent checked and perfectly flawless is shipped to the customer.

Industry-specific products

Individually cut-to-length micro tubes made of metal or plastics
Precision parts / Precision tubes
Rubber joints / seal parts
Small parts of different materials
and many more

Your benefits at a glance

Reduces production costs
Increases product quality and output
Automated and more efficient processes
Increases process stability and repeatability
Interlinking of Big Data – Ready for Industry 4.0
Saves resources and investment capital
Scalable technology – Made in Germany

Detectable defects and irregularities

The system detects and classifies surface defects, such as inclusions, grooves, scratches or dents, over the complete product length. It also checks the cut edges for burs or other irregularities. With six high-speed cameras of more than 2,500 pixels each, the system detects surface defects down to 30 µm.

Technology : optical
Applications : surface
Other characteristics : high-speed, non-contact
