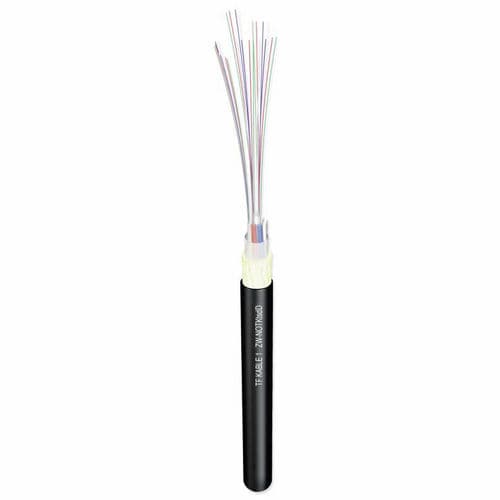

Optical data cableW-xNOTKtsdD series

ZW-NOTKtsdD, W-YnOTKtsdD
Universal fibre optic cable with multiple optical fibres in a loose tube, reinforced, flame retardant
(a) CENTRAL STRENGTH MEMBER: dielectric FRP rod with or without PE jacket,
(b) TUBE: loose tube fi lled with a thixotropic jelly
(c) OPTICAL FIBRES: singlemode (J), singlemode with non-zero dispersion (Jn), gradient multimode (G/50), gradient multimode (G/62,5)
(d) FILLER: polyethylene
(e) CABLE CORE: 6, 8, 12, 18 or 24 tubes or tubes and fi llers stranded around central strength member
(f) SEALING: dry
(g) REINFORCEMENT:
aramid yarns
(h) RIPCORD: 2
(i) SHEATH: halogen free flame retardant, black

Type : data
Protection : flame-retardant, reinforced
Configuration : multi-fiber, stranded
Applications : for indoor use, for telecom applications
Material of the insulation : aramid yarn
Other characteristics : flexible, halogen-free, loose tube, single-mode, multimode
Temperature : Min.:
