T&S Communication TSQS-851HG-xxxC is a Four-Channel, Pluggable, Parallel, Fiber-Optic QSFP+SR4 for 100 or 40 Gigabit Ethernet, Infiniband FDR/EDR Applications. This transceiver is a high-performance module for short-range multi-lane data communication and interconnects applications. It integrates four data lanes in each direction with 100 Gbps bandwidth. Each lane can operate at 25Gbps up to 70 m using OM3 fiber or 100 m using OM4 fiber. These modules are designed to operate over multimode fiber systems using a nominal wavelength of 850 nm. The electrical interface uses a 38 contact edge type connector. The optical interface uses a 12 fiber MTP(MPO) connector.

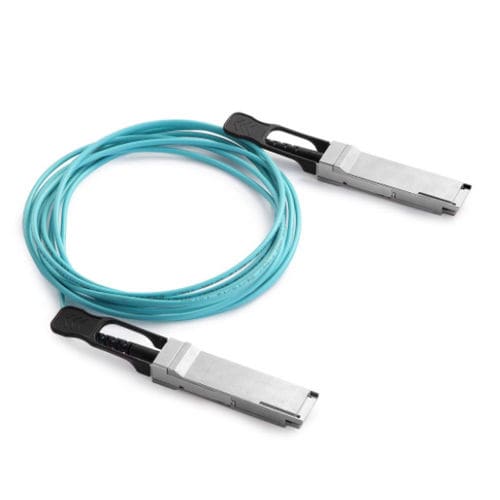

Four-channel full-duplex active optical cable with QSFP28 plugs
Produced by T&S, a professional AOC manufacturer, the 100G QSFP series has multi-rate capability: 10Gb/s and 25Gb/s per channel
Reliable VCSEL array technology using MMF
Hot Pluggable
RoHS compliant

IEEE 802.3bm 100GBASE SR4 and 40GBASE SR4 28G Fiber Channel
Infiniband FDR/EDR

Type : data
Format : gigabit Ethernet, MPO, QSFP
Configuration : duplex, parallel
Applications : for telecommunication networks
Other characteristics : multimode
Temperature : Min.:
Nominal voltage : Min.:
