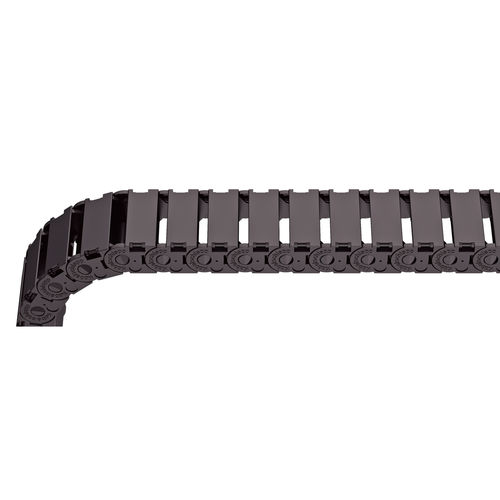

Cable carriers for standard applications

Plastic chain links
Inside space is gentle on the cables – no interfering edges
Types with single-part links
Types with opening crossbars
High torsional rigidity through large link surface
Extensive unsupported length and high additional loads through optimised stroke system
Easy to shorten and extend
Long service life through large bolt hole connection
End connectors with integrated strain relief

Features

Cost-effective cable carrier
Easy and fast installation
Many types available immediately ex-stock world wide
Long service life
Great unsupported lengths compared to the unit size
High torsional rigidity
Easy to install

MONO 0130/0132

Inner height [hi]:
10 mm
Inner widths [Bi]:
6 – 40 mm
Pitch [t]:
13 mm
Bending [KR]:
20 – 37 mm

MONO 0202

Inner height [hi]:
11 mm
Inner widths [Bi]:
6 – 20 mm
Pitch [t]:
20 mm
Bending [KR]:
18 – 50 mm

MONO 0180/0182

Inner height [hi]:
15 mm
Inner widths [Bi]:
10 – 40 mm
Pitch [t]:
18 mm
Bending [KR]:
28 – 50 mm

Type : openable, partially enclosed
Material : plastic
Other characteristics : simple installation
Width : Min.:
Displacement speed : Min.:
